THE Apex DIFFERENCE

Whether you’re looking for the most compact dinghy to an extra-large commercial operation RIB, Apex is recognized worldwide for its quality. Their boats are lightweight, powerful and durable. Apex standard selection ranges from 2.40 m to 13 meters or up to 18 meters for custom orders. With over 30 years of experience, APEX offers solutions for a variety of industries from the coast guard to commercial.

*Apex boats are Bureau Veritas registered to meet international quality standards.

OPEB RIB LITE:
single fiberglass hull

The “World lightweight champion” Single Fiberglass Hull gives exceptional comfort and stability.

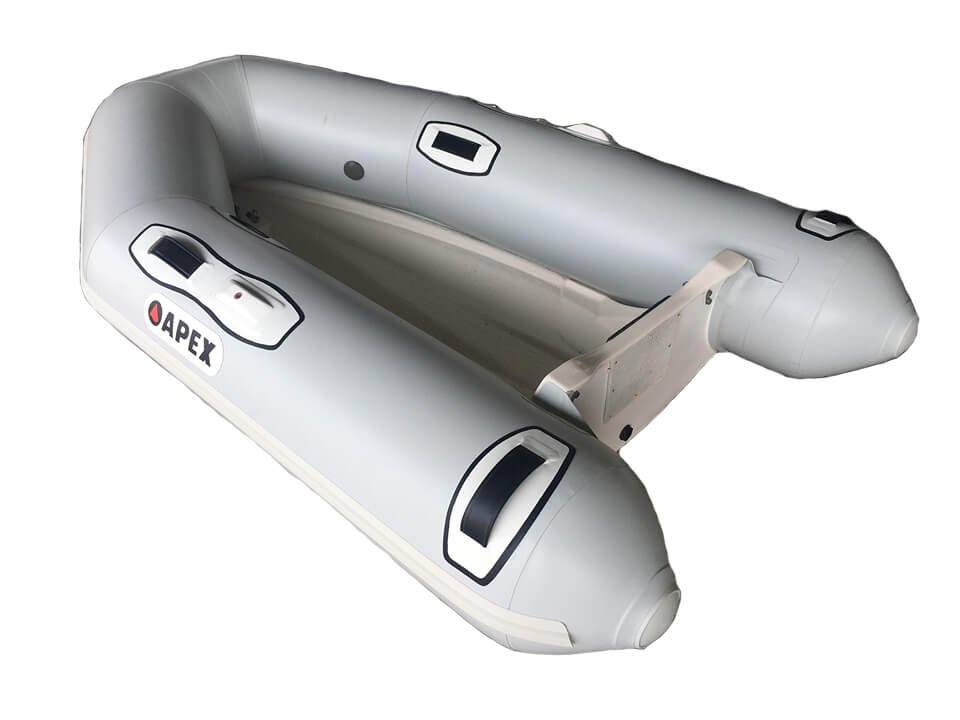

A-8 Lite

  • Length ft. (m): 8′ 0″ (2.44)
    Beam ft. (m): 5′ 0″ (1.52)
    Int. length ft. (m): 5′ 4″ (1.63)
    Int. beam ft. (m): 2′ 4″ (0.71)
    Tube dia. inch (cm): 16 1/2″ (42)
    Air chambers: 2
    Persons: 4
    Weight lbs (kg): 85 (39)
    Rec. H/P (kw): 8 (6)
    Shaft length: S/15″

A-9 Lite

  • Length f’t. (m): 8′ 11″ (2.72)
    Beam ft. (m): 5′ 2″ (1.57)
    Int. length ft. (m): 6′ 2″ (1.87)
    Int. beam ft. (m): 2′ 6″ (0.76)
    Tube dia. inch (cm): 16 1/2″ (42)
    Air chambers: 2
    Persons: 4
    Weight lbs (kg): 89 (41)
    Rec. H/P (kw): 10 (7.5)
    Shaft length: S/15″

> 2 Life lines (safety grab rail)
> 1 Front handle
> 2 Side hypalon handles
> 1 Light gray raised rubrail
> 3 inflation valves (2 on A-8 and A-9 Lite)
> “V” hull

A-10 Lite

  • Length ft. (m): 10′ 0″ (3.05)
    Beam ft. (m): 5′ 7″ (1.70)
    Int. length ft. (m): 7′ 1″ (2.16)
    Int. beam ft. (m): 2′ 8″ (0.81)
    Tube dia. inch (cm): 17″ (43)
    Air chambers: 5
    Persons: 5
    Weight lbs (kg): 99 (45)
    Rec. H/P (kw): 10 (7.5)
    Shaft length: S/15″

Standard Equipment for all Open RIB Lite Single Fiberglas Hulls:

> 1 Hull drain with plug
> 1 Bench seat and brackets
> 1 Front stainless U-bolt 8 mm
> 1 Lifting stainless U/bolts 8 mm
> 2 Oars
> 2 Oarlocks

A-11 Lite

  • Length ft. (m): 11′ 0″ (3.35)
    Beam ft. (m) : 5′ 7″ (1.70)
    Int. length ft. (m): 7′ 11″ (2.41)
    Int. beam ft. (m): 2′ 8″ (0.81)
    Tube dia. inch (cm): 17″ (43)
    Air chambers: 3
    Persons: 5
    Weight lbs (kg): 116 (53)
    Rec. H/P (kw): 15 (11.2)
    Shaft length: S/15″

> 2 Oarlocks bases
> 2 Oar blade straps
> 1 Foot pump
> 1 Repair kit
> 2 Transom engine plates

OPEB RIB LITE & STANDARD:
ALUMINUM hull

One of the lightest aluminum RIBs on the market, these are made with 3.17MM marine grade aluminum.

Open RIB Lite: ALUMINUM

AR-270

  • Length ft. (m): 8’92” (2.72)
    Beam ft. (m): 5′ 2″ (1.59)
    Tube dia. inch (cm): 16′ 1/2″ (42)
    Tube material: 1100 DETX
    Hull thickness: 3.17 mm
    Air chambers: 2
    Persons: 4
    Weight lbs (kg): 112 (51)
    Rec. H/P (kw): 8 (6)
    Shaft length: S/15″

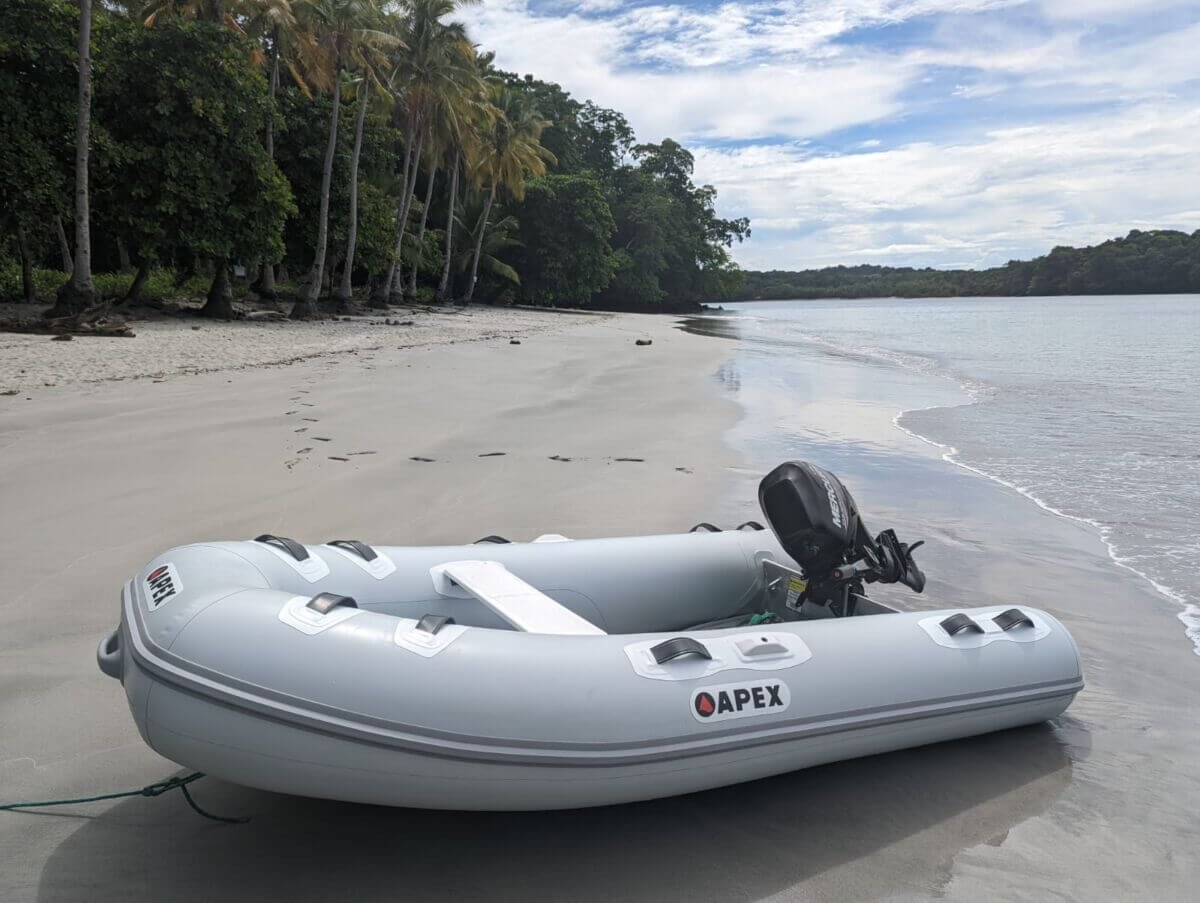

AR-310

  • Length ft. (m): 11′ 0″ (3.30)
    Beam ft. (m): 5′ 6″ (1.66)
    Tube dia. inch (cm): 17″ (43)
    Tube material: 1100 DETX
    Hull thickness: 3.17 mm
    Air chambers: 3
    Persons: 5
    Weight lbs (kg): 158 (72)
    Rec. H/P (kw): 15 (7.5)
    Shaft length: S/15″

> 2 Oars
> 2 Oarlocks
> 2 Oarlock bases
> 2 Side handles
> 1 Bench seat and brackets
> 2 Lifelines w/ oarlock base

AR-330

  • Length ft. (m): 11′ 0″ (3.30)
    Beam ft. (m) : 5′ 6″ (1.66)
    Tube dia. inch (cm): 17″ (43)
    Tube material: 1100 DTEX
    Hull thickness: 3.17 mm
    Air chambers: 3
    Persons: 5
    Weight lbs (kg): 158 (72)
    Rec. H/P (kw): 15 (7.5)
    Shaft length: S/15″

Standard Equipment for all Open RIB Lite & STANDARD ALUMINUM Hulls:

> 2 Inflatation valves
> 1 Foot pump
> 1 Repair kit
> 1 Front rubber handle
> 1 Light grey raised rubrail
> 1 Deep “V” hull

> 1 Hull drain with plug
> 1 Front heavy duty towing point
> 3 Heavy duty lifting points
> 1 double side aluminum transom
> 2 Transom engine plastic plates
. 1 Non-skid deck

AL-250

  • Length ft. (m): 8′ 2″ (2.50)
    Beam ft. (m): 5′ 2″ (1.57)
    Int. length ft. (m): 5′ 1″(1.55)
    Int. beam ft. (m): 2′ 6″(0.76)
    Tube dia. inch (cm): 16.5″ (42)
    Air chambers: 2
    Persons: 4
    Weight lbs (kg): 80 (36)
    Rec. H/P (kw): 8 (6)
    Shaft length: S/15″

Open RIB Lite: STANDARD

AL-270

  • Length f’t. (m): 8′ 11″ (2.72)
    Beam ft. (m): 5′ 6″ (1.57)
    Int. length ft. (m): 5′ 8″ (1.78)
    Int. beam ft. (m): 2′ 6″ (0.76)
    Tube dia. inch (cm): 16.5″ (42)
    Air chambers: 2
    Persons: 4
    Weight lbs (kg): 88 (40)
    Rec. H/P (kw): 10 (7.5)
    Shaft length: S/15″

AL-330

  • Length ft. (m): 10′ 1″ (3.05)
    Beam ft. (m): 5′ 7″ (1.70)
    Int. length ft. (m): 7′ 1″ (2.16)
    Int. beam ft. (m): 5′ 8″ (1.78)
    Tube dia. inch (cm): 17″ (43)
    Air chambers: 2
    Persons: 5
    Weight lbs (kg): 98 (45)
    Rec. H/P (kw): 15 (11.18)
    Shaft length: S/15″

OPEN RIB:
STANDARD fiberglass hull

A-8

  • Length ft. (m): 8′ 00″ (2.44)
    Beam ft. (m): 5′ 0″ (1.52)
    Int. length ft. (m): 5′ 4″ (1.63)
    Int. beam ft. (m): 2′ 4″ (0.71)
    Tube dia. inch (cm): 16 1/2″ (42)
    Air chambers: 2
    Persons: 4
    Weight lbs (kg): 107 (49)
    Payload lbs (m): 750 (340)
    Rec. H/P (kw): 8 (6)
    Shaft length: S/15″

A-11

  • Length ft. (m): 10′ 12″ (3.35)
    Beam ft. (m) : 5′ 7″ (1.70)
    Int. length ft. (m): 7′ 11″ (2.41)
    Int. beam ft. (m): 2′ 72″ (0.81)
    Tube dia. inch (cm): 17″ (43)
    Air chambers: 3
    Persons: 5
    Weight lbs (kg): 218 (99)
    Payload lbs (m): 1150 (523)
    Rec. H/P (kw): 15 (11.2)
    Shaft length: S/15″

A-9

  • Length f’t. (m): 8′ 11″ (2.72)
    Beam ft. (m): 5′ 2″ (1.57)
    Int. length ft. (m): 6′ 2″ (1.87)
    Int. beam ft. (m): 2′ 6″ (0.76)
    Tube dia. inch (cm): 16 1/2″ (42)
    Air chambers: 2
    Persons: 4
    Weight lbs (kg): 127 (58)
    Payload lbs (m): 950 (431)
    Rec. H/P (kw): 10 (7.5)
    Shaft length: S/15″

> 2 Single front deluxe lifelines
> 2 Lifelines (deluxe grab rail) w/ oarlock base
> 1 Front handle
> 2 Side handles
> 1 light gray raised rubrail
> 3 Inflation valves (2 on A-8 ans A-9)
> 1 “V” hull

A-10

  • Length ft. (m): 10′ 0″ (3.05)
    Beam ft. (m): 5′ 7″ (1.70)
    Int. length ft. (m): 7′ 1″ (2.16)
    Int. beam ft. (m): 2′ 8″ (0.81)
    Tube dia. inch (cm): 17″ (43)
    Air chambers: 3
    Persons: 5
    Weight lbs (kg): 207 (94)
    Payload lbs (m): 1050 (477)
    Rec. H/P (kw): 10 (7.5)
    Shaft length: S/15″

Standard Equipment for all Open RIB Lite Single Fiberglas Hulls:

> 1 Diamond non-skid deck
> 1 Front locker w/large opening (A-10, A-11 and A-12)
> 1 Hull drain with plug
> 1 Inner hull drain with plug
> 2 Oarlocks (except A-12)
> 2 Oarlocks bases (except A-12)
> 2 Oars rests (4 A-11, A-12 inside tube)

A-12

  • Length ft. (m): 12′ 00″(3.66)
    Beam ft. (m) : 5′ 10″ (1.78)
    Int. length ft. (m): 9′ 0″ (2.74)
    Int. beam ft. (m): 2′ 8″ (0.83)
    Tube dia. inch (cm): 18 1/2″ (47)
    Air chambers: 3
    Persons: 6
    Weight lbs (kg): 247 (112)
    Payload lbs (m): 1350 (613)
    Rec. H/P (kw): 20 (15)
    Shaft length: S/15″

> 1 Foot pump
> 1 Repair kit
> 2 Transom engine plates
> 1 Bench seat and brackets (except A-12)
> 1 Front stainless U-bolt 8 mm
> 4 Lifting stainless U/bolts 8 mm (3 A-8, A-9)
> 2 Oars
